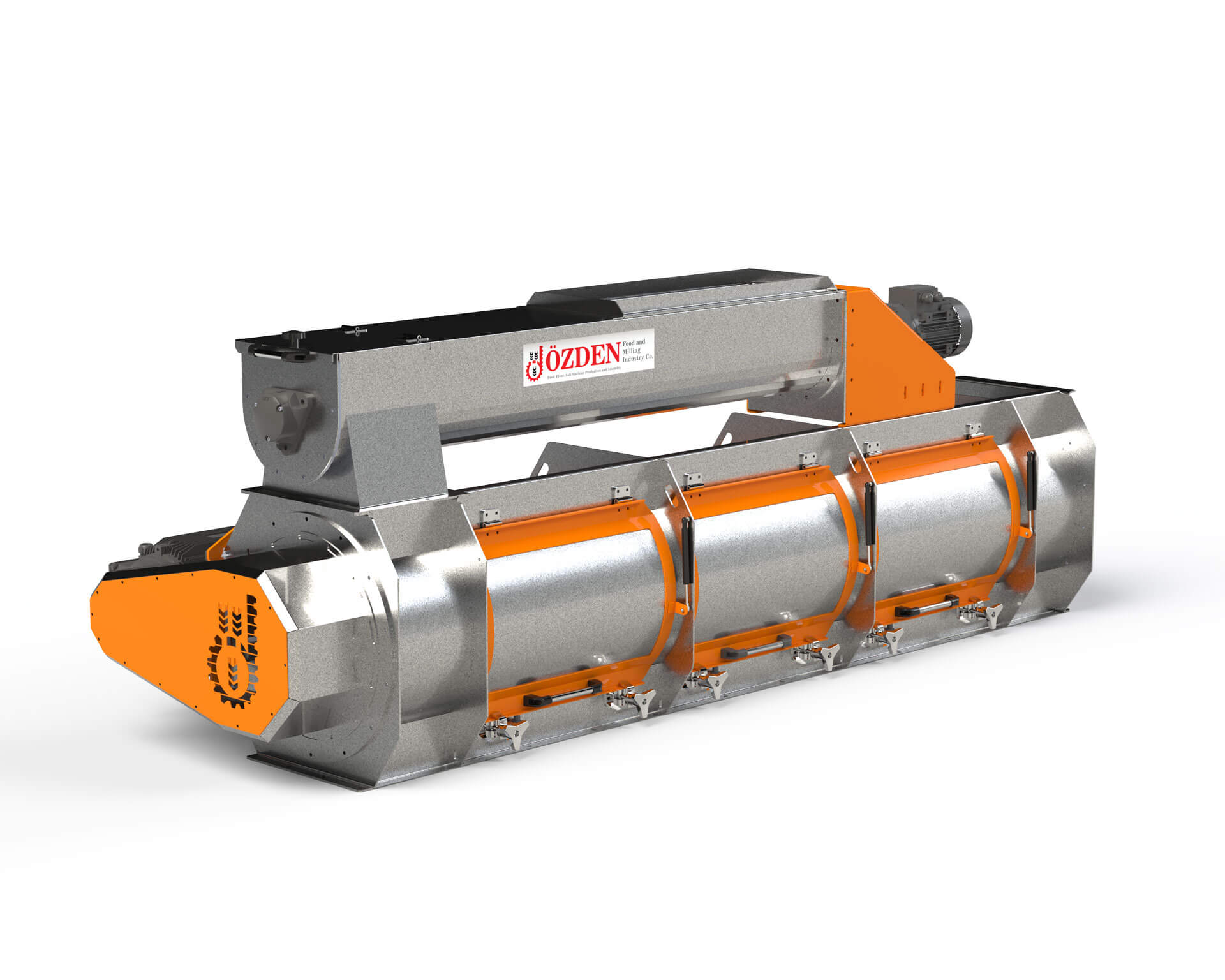

Working Principle
Conditioners consist of 1-3 layers as pellet pres capacity. Conditioner provides homogenous steam or liquid diffusion to product. Adjustabla paddlles obtain desired product tempering. Steam is injected to semi-finished product thus pelleting capacity increases.
Features
Body is manufactured in ST 37, ST52 metal sheet or AISI 304 chrome steel in accordance with request.
Belt pulley motor driven changes retention time in conditioner as product.
Adjustable heat treated paddles.
Special designed single point steam injection.
Static and dynamic balanced rotor.
Varios conditioner capacities.
Spare Parts
Bearing,Housing & Belt
Paddles
Steam valves
MODEL | DIMENSIONS | ||||||
A | B | C | Motor Power | Pellet Press | Quantity | ||
OKN Ø300 | 2300 | 800 | 550 | 4 kW | PL 305*108 PL 305*90 |
1 | |
OKN Ø400 | 2300 | 800 | 650 | 5.5 kW | PL 520*132 PL 453*138 |
1 | |
OKN Ø450 | 2300 | 800 | 650 | 7.5 kW | PL 900*250 PL 520*178 |
1 | |
OKN Ø450 | 3330 | 1050 | 650 | 15 kW | PL 760*230 PL 660*230 |
2 |
